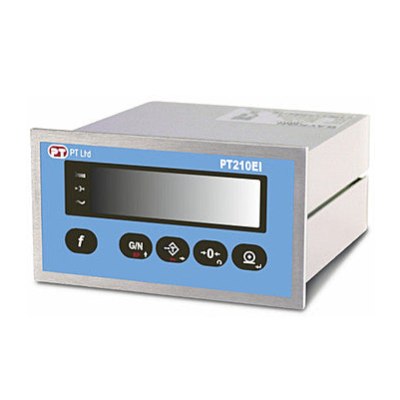

The PT210 is a smart indicator for industrial weighing process applications offering
powerful PLC integration facilities; standard serial ports such as RS-232C, RS-485, up to 4 digital inputs and 5 relay outputs.

The PT210 series, apart from the PT210DIN, is approved by Weights & Measures
Authorities for use in Accuracy Class III applications with 10000 scale intervals in
accordance with OIML R76.

The PT210 is available in a range of versions to connect by various fieldbus protocols such as Ethernet, Modbus, PROFIBUS, PROFINET, CANopen and also a version with analogue output. There is one DIN rail mount version with Analogue and ModBus RTU.

GENERAL FEATURES

• Up to 1600 measurements per second
• 16,000,000 internal resolutions
• Up to 100000 scale divisions
• OIML R76 Approved models
• Up to 8x 350 Ω load cells
• Programmable for tension - compression testing with analogue output.
• Ergonomic design with small size
• 13.5 mm LED display
• Multiple units (g, kg, t, lb, klb, N, kN)
• vCal Electronic calibration from PC
• Linearity correction
• Gravity compensation adjustment
• Programmable via PC
• RS-232C & RS-485 serial interface
• 12 - 28 VDC supply
• up to 4 digital inputs, 5/6 Relay contact outputs
• Output Relays can be controlled by PLC
