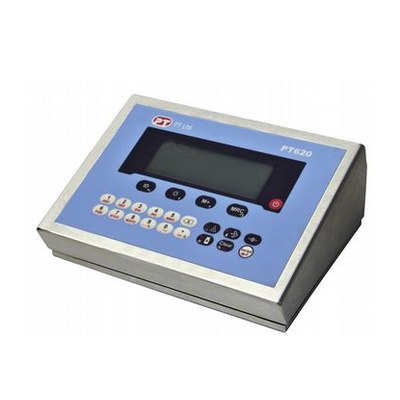

The PT620 is an advanced, high quality general purpose weighing indicator for industry in a durable IP67 stainless steel housing. Ideal for platform, truck and hopper scales among other applications and is available with a wide range of options. The PT620 has many of the advanced features of the PT630 for stand alone use without the fieldbus connectivity.

The PT620 is approved by Weights & Measures Authorities for use in Accuracy Class III
applications with 10000 intervals in accordance with OIML R76.
Weighing, and Dynamic weighing for animals and fluctuating loads, check weighing,
classifying, filling and counting are standard as is printing which is selectable from 4
languages.

GENERAL FEATURES

• Wide angle LCD display with multi-coloured back light, 22mm main digits and 8mm alphanumeric auxiliary digits.
• Desk, wall and panel mount versions
• Up to 999999d display resolution
• Up to 800 conversions per second
• OIML approved to 10000d
• Dedicated navigation keys provide easy operation
• High sensitivity (to 0.05 μV/d)
• Linearity correction
• Gravity Adjustment
• Keypad locking
• Mains and 12-28V DC versions
• Dynamic weighing
• Up to 8x 350Ω load cells
• 2x RS-232C 1x USB and 1x RS485 data port standard
• Connectivity to remote displays and printers
• Programmable print format
• Choice of 6 languages for printing
• Built in real time clock
• User setable password access
• Stainless steel housing to IP67

Specifications
